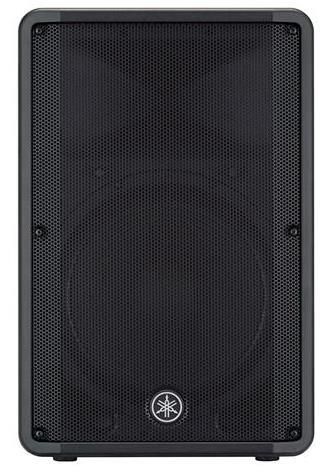

Yamaha CBR15 15in Passive Speaker System

Stock Code:
330938
Price:
$579.00
Stock Level:
In Stock
Or Rent From
$5.54 per weekReturn any time after minimum rental agreement
Apply NowLearn MoreApply to Purchase Info

Description

Yamaha CBR15, Passive 15" 1000watt Loudspeaker

2-way Speaker, Bass-reflex Type

The CBR15 provides the lowest frequency in its lineup, delivering outstanding performance for the front-of-house sound for live performance, DJ events or for installation situations that require highly prominent low and high SPL.

The CBR Series is a lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker design and acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind. Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovative approach to speaker design, Yamaha engineering team's primary focus was to deliver high-power, high-definition sound in a highly
portable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.

  • Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound
  • HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level
  • Rugged, Highly Portable Enclosure Design
  • Simple Connectivity
  • Versatility for a Variety of Applications

CBR Series speakers come equipped with carefully selected and customized transducers that feature a highly responsive woofer and a precise 2.5” compression driver ensuring consistent high-definition sound with minimal distortion even at high output levels. Additionally, a newly designed wide-dispersion constant directivity horn minimizes the radiation pattern deterioration in oblique directions that more conventional horns are prone to, allowing sound to expand in a more rectangular pattern, evenly dispersing wide-frequency sound to the outer-most edges of the coverage area.

Have you ever blown your speakers by cranking up the output levels beyond your speakers capabilities? CBR Series speakers employ a protection function that limits excessive input to the HF
unit. This valuable protection circuit affords you worry-free operation of your speakers when you need them most. Combined with a highly responsive LF unit, CBR Series speakers reliably deliver clear, precise sound at any output level.

CBR Series speakers feature a very compact, durable, and lightweight plastic cabinet equipped with newly designed, ergonomic handles that greatly minimize system transport and setup. In addition, all CBR models feature a sleek, steel front grille that seamlessly blends in with installation aesthetics while
protecting the vital inner speaker components from environmental hazards.

Smart Enclosure Design for Floor Monitoring The CBR Series speakers feature an optimized 50° wedge
angle for floor monitoring. In addition, the CBR12 and CBR15's symmetrical shape allows for effortless
configuration of a mirror-mode floor monitoring system for a larger and more defined sweet spot.

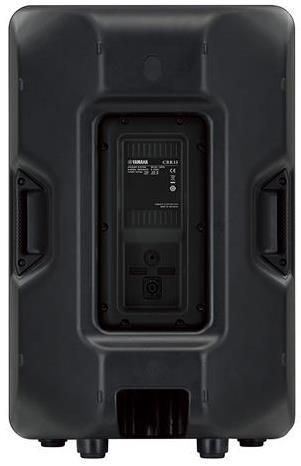

CBR Series speakers are equipped with one speakON jack and one 1/4" Phone jack that allow for fast and easy connectivity in both personal and professional environments.

SPECIFICATIONS :

Speaker type 2-way Speaker, Bass-reflex Type
Frequency range (-10dB) 46 Hz - 20 kHz
Nominal coverageH 90°
V 60°
ComponentsLF 15" Cone, 2.5" Voice Coil (Ferrite Magnet)
HF 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
Crossover 2.0 kHz
Power ratingNOISE 250W
PGM 500W
PEAK 1000W
Nominal impedance 8Ω
SPLSensitivity (1W; 1m on axis) 96dB SPL
Peak (Calculated) 126 dB SPL
I/O connectors 1/4" Phone x 1, speakON NL4MP x 1
Cabinet material Plastic
Finish Black
Handle Side x 2
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
Pole socket Φ35 mm　Bottom x 1
DimensionsW 455mm (17.9")
H 700mm (27.6")
D 378mm (14.9")
Net weight 17.7 kg (39.0 lbs)
Accessories Optional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400
