Yamaha DBR12 Powered Speaker System

Stock Code:
330907
Price:
$799.00
Stock Level:
In Stock
Or Rent From
$7.62 per weekReturn any time after minimum rental agreement
Apply NowLearn MoreApply to Purchase Info

Description

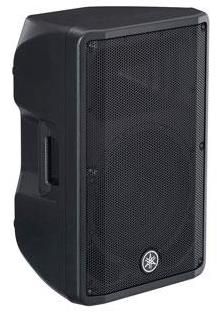

Yamaha DBR12, 12" 2-way, 1000-watt Powered Loudspeaker

The DBR12 represents a perfect balance of size and performance, with 1000W of power and outstanding resolution at any output level. Ideal for front-of-house, floor monitoring applications or even the stage side fills, the DBR12 is an ideal choice for a wide range of applications.

DBR Series powered loudspeakers harness the same state-of-the-art Yamaha DSP, amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level.

SPECIFICATIONS :

  • Speaker type : 2-way, Bi-amp powered speaker, Bass-reflex type
  • Frequency range (-10dB) : 52Hz – 20kHz
  • Nominal coverage : H 90° , V 60°
  • Components : LF Diameter:12" cone, Voice Coil:2", Magnet:Ferrite
  • HF : Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
  • Crossover : 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
  • Output power : Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
  • Maximum output level (1m; on axis) : 131dB SPL
  • I/O connectors : INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
  • Processors : D-CONTOUR: FOH/MAIN, MONITOR, OFF
  • Heat dissipation : Fan cooling, 4 speeds
  • Cabinet material : Plastic
  • Finish : Black
  • Handle : Side x 2
  • Flying and mounting hardware : Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
  • Pole socket : 35mm (Bottom x 1)
  • Dimensions : W 376mm (14.8") x H 601mm (23.7") x D 348mm (13.7")
  • Net weight : 15.8 kg (34.8 lbs)
