EV Evolve 50 PA System

Stock Code:
331110
Price:
$2,590.00
Stock Level:
In Stock
Or Rent From
$24.93 per weekReturn any time after minimum rental agreement
Apply NowLearn MoreApply to Purchase Info

Description

Electro-Voice EVOLVE 50 Portable Bluetooth® Column PA System

1000-WATTS

EVOLVE 50

Pure, accurate Electro-Voice audio performance in a sleek form. The perfect choice for DJs, mobile entertainers, bands, singer/songwriters and any venue where high output portable sound is needed no other column system currently available sounds as good, looks as good, or is as easy to use. Acoustically powerful, aesthetically discreet: column sound evolves to the next level.

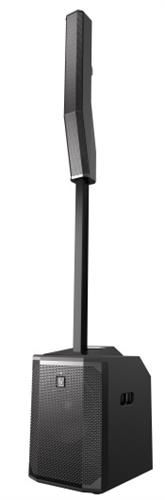

The EVOLVE 50 Portable Bluetooth® Column PA System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP.

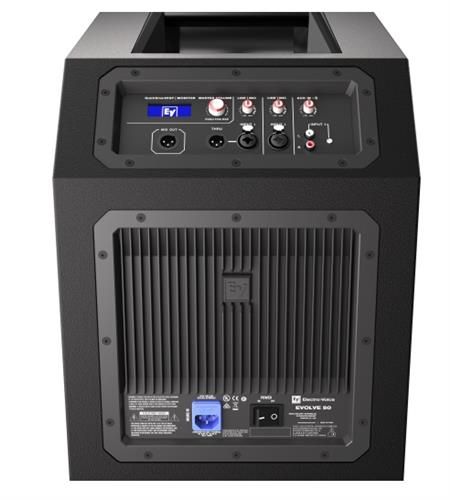

The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz.

The bi-directional aluminum pole’s connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.

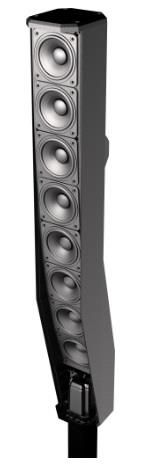

Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.

The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The Electro-Voice QuickSmart Mobile application utilizes Bluetooth® Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth® audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.

SPECIFICATIONS:

  • Coverage (Nominal -6 dB) V : 40°
  • Crossover Frequency ; 200Hz
  • Depth : Sub: 18.5 in; 471mm Column: 6.9 in; 172mm Pole: 2.2 in; 55mm
  • Height : Sub: 20.9 in; 230mm Column: 32.5 in; 825mm Pole: 36.6 in; 929mm
  • Width : Sub: 13.6 in; 345mm Column: 4.0 in; 102mm Pole: 1.9 in; 48.5mm
  • Frequency Range (-10 dB) : 37 Hz – 20k Hz
  • Frequency Response (-3 dB) : 43 Hz – 20 kHz
  • Grille : Steel with black powder coat
  • HF Power Handling : 500 watts
  • LF Power Handling : 500 watts
  • Power Rating : 1000 watts
  • Weight Net : 26.25kg
  • Woofer Size : 12"
