Tascam Model 16 Mixer Multritrack Rec

Stock Code:
331489
Price:
$1,699.00
Stock Level:
In Stock
Or Rent From
$16.39 per weekReturn any time after minimum rental agreement
Apply NowLearn MoreApply to Purchase Info

Description

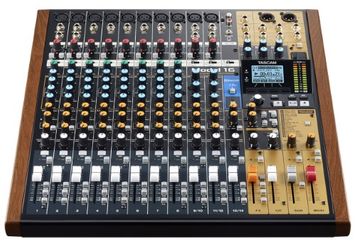

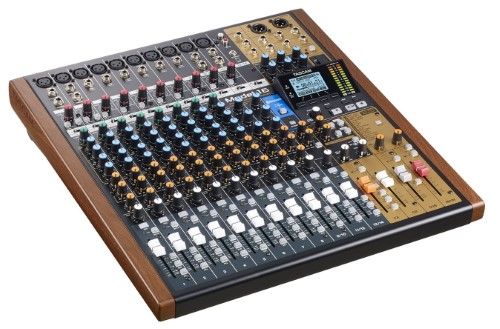

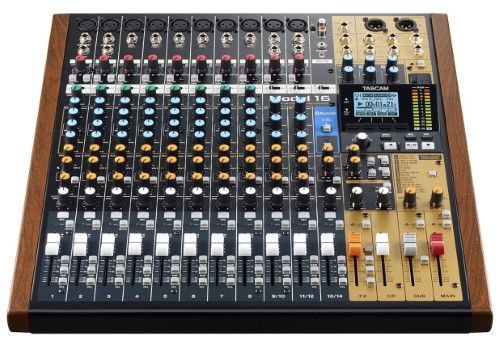

Tascam Model 16 Multitrack Live Recording Console

An all-in-one analog mixer, multi-track digital recorder and audio interface

MODEL-16



TASCAM's Model 16 all-in-one mixer brings the flagship Model 24's powerful recording and mixing features and functionality to a new level of compactness and affordability, creating a full-featured small format mixer that combines the warmth of analog with a digital workflow. The Model 16 is the perfect mixing solution for small format live performance, recording and production environments, featuring a multi-track recorder, USB audio interface, effects, comprehensive mixing and routing capabilities, and Bluetooth wireless.

  • 14 input analog mixer with 14 line and 10 mic inputs
  • Multitrack recording and playback with 16-track recording (14 input channels and MAIN MIX L/R bus)
  • USB audio interface functions built-in; 16 tracks (14 input channels and MAIN MIX L/R bus) can be input to the computer; 14 track outputs and computer outputs can be assigned to channel inputs; Supports USB 2.0 audio with resolutions up to 24-bit and 48kHz sampling frequency
  • Analog compressors included on channel 1-8 inputs
  • 60mm faders enable precise adjustments
  • LINE/INST (BAL) input jacks that support high impedance (Hi-Z) on channels 1-2
  • Channel inserts (INSERT) on channels 1-2
  • Multiple buses include stereo main (MAIN MIX L/R bus), sub (SUB L/R bus) and monitor (MONITOR OUT 1/2)
  • 3 AUX sends (MON 1/MON 2/FX)
  • Input channels have 3-band semi-parametric EQs with adjustable mid frequencies
  • 4-band semi-parametric equalizer for output
  • 16 TASCAM preset effects can be used for a variety of applications
  • Multitrack recording and playback possible using SD cards
  • Bluetooth® audio playback and recording supported
  • Punching in and out function per track (including punching in and out automatically and with footswitches)
  • SD/SDHC cards and SDXC cards (Class 10 or more)
  • Multiple footswitch functions available (select play/pause, effect muting or punch in/out)
  • CONTROL ROOM L/R and PHONES outputs built-in (levels can be adjusted and PFL/AFL L/R bus monitoring can be enabled separately)

With the Model 16, your perfect mix has met its match.

14 easy-to-access top-panel inputs provide flexible options for microphones or instrument connections, including 10 Mic/14 Line/2 Inst to allow easy access for connecting microphones, instruments or other audio sources for live recording or mixing.

A Bluetooth 5.0 enabled Stereo Input Source Channel also provides stereo RCA and 1/8" Stereo (selectable) jacks for streaming audio device level control.

Mic Inputs 1 through 8 deliver pristine audio quality, featuring TASCAM's Ultra HDDA (High Deï¬Ânition Discrete Architecture) technology for pure, transparent natural tone with ultra-low noise.

A tactile Gain knob tops each channel for precise tweaking of input levels. A push-button Lo-Cut filter and three-position Input Selector (Live/PC/MTR) facilitate quick and precise control of input source signals. A 1-knob inline Compressor is available on inputs 1-8 as is a mid-range sweepable 3-band EQ.

Model 16

3 Aux bus (MON1, MON2[pre/post], FX) and PFL Listen round out the Model 16's pro-level signal path routing options. A Sub bus provides an additional stereo lineout source to the master SEND section.

3 AUX Outs let you route the audio signal for stage monitoring, or to external gear such as outboard effects, signal processors or headphone mixes. And the Footswitch control jack provides additional monitoring and control features.

Model 16

The Model 16's MTR section features a powerful internal 16-Track Multi-track recorder, capturing 14 Inputs and 2 Main Mix simultaneous tracks of audio to an internal SD card in pristine 24-bit/48 kHz quality. Record anything from live performance to rehearsals, worship events, spoken word and meetings, as well as perform overdubs and punch-in/out quickly and easily. Recorded tracks can be immediately mixed, mastered or exported to a computer for further editing, formatting and publishing.

An internal 16 input/14 output USB audio interface captures audio at a 24-bit/48 kHz sampling rate for recording or playing back from an external DAW (digital audio workstation). The new generation TASCAM USB driver delivers the minimum size of the audio buffer which can be set to as low as 4 samples, resulting in extremely low latency and the highest level of efficiency when recording audio.

Using the channel Mode switch, each channel can select the input source as needed. This allows a super flexible input configuration to be selected where some inputs can be live, other inputs can play tracks from the internal MTR, while other inputs can play tracks from a computer via USB, all simultaneously.

The Model 16's versatile Effects Section offers 16 editable and foot-controllable multi-effects, including reverb, delay, chorus and flange.

A 4-Band EQ with mid-range sweepable, wide/narrow Q can be dialed in for crafting the perfect mix, assignable to MAIN outs or MON1/2 outs as you like.

SPECIFICATIONS:

  • Supported Media: SD cards (Class 10 or more); SDHC cards (Class 10 or more); SDXC cards (Class 10 or more)
  • File System: SD card: FAT16; SDHC card: FAT32; SDXC card: exFAT
  • Recording file formats: WAV (BWF): 44.1/48kHz, 16/24-bit (Maximum file size: 2 GB)
  • Playback file formats: WAV (BWF): 44.1/48kHz, 16/24-bit
  • Recordable Channel: Max. 16 channels (14ch + 2 stereo mix)
  • MIC input jacks (1-8, 9, 11): Connectors: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
    Maximum input level: +10 dBu
    Nominal input level: -8 dBu
    Minimum input level: -58 dBu
    Gain adjustment range: 0 - 50 dB
    Input impedance: 1.8 kΩ
  • LINE/INST (BAL) input jacks (1-2): Connectors: 6.3mm (1/4”) standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
    Maximum input level: +22 dBu
    Nominal input level: +4 dBu
    Gain adjustment range: -10 - +40 dB
    Input impedance: 22 kΩ (LINE)/1 MΩ (INST)
  • LINE (BAL) input jacks (3-8): Connectors: 6.3mm (1/4”) standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
    Maximum input level: +22 dBu
    Nominal input level: +4 dBu
    Gain adjustment range: -10
  • L/MONO (BAL) / R (BAL) input jacks (9/10-11/12): Connectors: 6.3mm (1/4”) standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
  • INSERT jacks (1-2): Connectors: 6.3mm (1/4”) standard TRS jacks (Tip: SEND, Ring: RETURN, Sleeve: GND)
    RETURN (Ring)
    SEND (Tip)
  • −10dBV input jacks (13/14) Connectors: RCA pin jacks
  • STEREO input jack (13/14) Connector: 3.5mm stereo mini jack
  • MAIN OUTPUT L/R jacks Connectors: XLR-3-32 (1: GND, 2: HOT, 3: COLD)
  • SUB OUTPUT L/R jacks Connectors: 6.3mm (1/4”) standard TRS jacks
  • AUX OUTPUT MON 1/2 jacks Connectors: 6.3mm (1/4”) standard TRS jacks
  • AUX OUTPUT FX jack Connector: 6.3mm (1/4”) standard TRS jack
  • CONTROL ROOM L/R jacks Connectors: 6.3mm (1/4”) standard TRS jacks
  • PHONES jack Connector: 6.3mm (1/4”) standard stereo jack
  • FOOTSWITCH jack Connector: 6.3mm (1/4”) standard TS jacks
  • USB port Connector: 4-pin USB B-type
    Protocol: USB 2.0 HIGH SPEED (480 Mbps
  • Bluetooth version: 5.0 Output class: 2 (about 10m* unobstructed transmission distance)
  • Dimensions With side panels: 430.0 × 112.9 × 463.0 mm (W x H x D, including protrusions)
  • Weight: 7kg
