Yamaha Stagepas 1KMKII + Dolly

Stock Code:
331494
Price:
$1,999.00
Stock Level:
In Stock
Or Rent From
$19.16 per weekReturn any time after minimum rental agreement
Apply NowLearn MoreApply to Purchase Info

Description

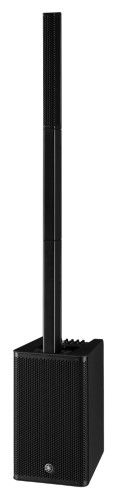

Yamaha STAGEPAS 1K mkII Portable PA System

with Dolly

STAGEPAS 1K mkII

The STAGEPAS 1K mkII is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage, delivering professional-level audio performance with a simple setup that enables aspiring artists to focus on their music and get the most out of their performances. Adding an even higher sound pressure level and more flexible remote functionality than its predecessor, the second-generation STAGEPAS 1K mkII boasts the same combination of lightweight cabinet design, professional mixing functions, and simple operability, that has elevated the STAGEPAS all-in-one package above all other portable PAs. By adopting a concert-quality mixer and speaker, we have raised the bar for portable PA by utilizing Yamaha’s unique experience and know-how developed over decades of producing innovative, professional audio equipment from every stage of music engineering and production.

Simple setup and simple control allow you to focus on your performance

The STAGEPAS 1K mkII comes equipped with a wealth of sound adjustment features, including 1-knob EQ to perform multiple EQ processes simultaneously, and MODE which allows you to adjust optimized compression settings like “Speech” or “Music” to match various applications. All adjustments can be done simply with one knob, making the perfect mix fast and easy without a complex workflow and letting you focus on your performance.

Best-in-Class Compact Power

A 1100 W amplifier drives the array speaker with 10 small-diameter 1.5-inch units, as well as a class-leading 12-inch subwoofer. The impressive 170° horizontal and 30° vertical coverage area delivers consistent performance over long distances, projecting uniform, high-quality sound from the front to the rear of the audience.

1100W, 125 dB SPL peak@1m, portable PA system with 5 channel digital mixer, 12-inch subwoofer, 1.5-inch x10 line array speaker, a Bluetooth input, SPX digital reverbs, Priority Ducker and 1knob EQ and multi band comp for master output.

  • 1100W power output
  • Biggest in the class 12-inch subwoofer for low frequency
  • 1.5-inch x10 slim line array speaker for high frequency
  • Digital mixer (3 mono mic/line + 1 stereo line)
  • Multi band comp “MODE” for master output
  • 1-knob EQ per channel
  • High resolution SPX digital reverb (4 types, parameter control)
  • Priority Ducker for stereo channel
  • 4 band PEQ per channel via remote control APP “STAEGPAS Controller”
  • 2x Hi-Z (high impedance) inputs
  • Link out and monitor out
  • Dedicated cover included
  • Optional reverb foot switch (FC5)
  • Dolly (DL-SP1K) for more portability included

Despite its lightweight and compact cabinet construction, the STAGEPAS 1K mkII features a high-output 1100 W amplifier powering a high-frequency array speaker system with 10 x 1.5-inch drivers and a large 12-inch subwoofer, producing best-in-class sound pressure levels of up to 125 dB SPL. An impressive 170° horizontal and 30° vertical coverage delivers clear, high-quality sound consistently throughout a wide listening area.

J-curve slim line array

Yamaha STAGEPAS 1K mkII: J-Curve Slim Line Array

The high-frequency speaker array is comprised of 10 x 1.5-inch small diameter speakers. By adopting a J-curve array configuration, the high-frequency unit achieves coverage of 170° horizontal and 30° vertical. With such a long, 10-driver array design the STAEGEPAS 1K mkII can deliver clear, high quality sound consistently over longer distances from the front to the rear of the audience.

Class-leading 12-inch “compact” subwoofer

Yamaha STAGEPAS 1K mkII: Class-leading 12-inch “compact” subwoofer

The subwoofer features a 12-inch speaker unit which is hardly “compact,” and actually the largest in its class. Despite housing a 12-inch speaker unit that is the largest in its class, the STAGEPAS 1K mkII boasts the smallest cabinet on the market for a subwoofer of this size and power.

By incorporating Yamaha’s own Twisted Flare Port™ technology to reduce port wind noise that can occur with compact bass-reflex subwoofers, the low-end output is maximized, producing very deep, powerful, distortion-free bass.

Professional functionality with simple operation

Yamaha has been developing innovative digital mixers for professional engineers around the world for decades. the STAGEPAS 1K mkII’s digital mixer incorporates that wealth of expertise, featuring an intuitive UI that makes it possible to dial in otherwise complex operations with a single knob, reducing setup time and streamlining system operation and allowing users to focus on their performance.

Digital mixer with versatile input

Yamaha STAGEPAS 1K mkII: Digital mixer with versatile input

With outstanding flexibility for a PA system of this size, the 5-channel digital mixer features three channels of mono microphone/line inputs and stereo inputs, with two of the mono input channels equipped with Hi-Z connectivity for direct input of acoustic-electric guitars and other instruments. In addition to Phone and 1/8-inch mini jacks, the stereo connections support playback with Bluetooth devices as well as a wide range of input sources from instruments to CDs, PCs and smartphones.

Professional control with a single knob

Yamaha STAGEPAS 1K mkII: Professional control with a single knob

STAGEPAS 1K mkII comes equipped with a wealth of sound shaping functions, including 1-knob EQ for optimized multi band EQ setting, industry standard SPX reverb, and the “Mode” control for master output compression settings that match various applications such as “Speech” or “Music.” Each of these functions can be set via a single knob, and have simplified many of the tough tasks like EQ and compression to get you great sound fast. In addition, the optional FC5 foot switch can also be used for on/off operation.

1. SPX the standard digital reverb

One knob operation gives you access to four types of Yamaha's proprietary SPX reverb settings—perfect for vocals and acoustic instruments. Simply turn the knob to change the reverb type and time, and then you’re ready to apply just the right amount of high-resolution effect to each channel.

2. 1-knob channel EQ

Whether turning to the left to cut unnecessary low-end frequencies for speeches, or turning to the right to emphasize the bottom and high end for band performances, this innovative equalizer can dial in the perfect sound adjustment with a simple turn of the knob.

3. “MODE” for master output

The multiband compressor adjusts optimized compression settings to suit various applications. By selecting MUSIC, SPEECH or CLUB MODE which is closest to your application, you can add a more professional edge to your sound without having to learn difficult compression/audio engineering principles.

Priority Ducker

Yamaha STAGEPAS 1K mkII: Priority Ducker

STAGEPAS 1K mkII features “Priority Ducker” function, which can be controlled from the STAGEPAS Controller application and also turned on/off directly from the device.

An invaluable feature for applications that require both public-speaking and background music, Priority Ducker allows a microphone to take priority over another sound source automatically, just by speaking into the mic. Stop talking and the other sound source is brought back to its original level, and thus no console operator is required for this simple yet valuable function. You can even adjust the ducker attenuation of the sound source to suit your preferences.

Expandable STAGEPAS systems

Yamaha STAGEPAS 1K mkII: Expandable STAGEPAS systems

Linking two STAGEPAS 1K mkII or a STAGEPAS 1K mkII with a DXL1K provides greater coverage area and increased output power for large-scale performances. Both stereo and mono playbacks are supported, and when set to mono, the inputs of the two linked units(*) can still be used.

* 2x STAGEPAS 1K mkII: up to six mono inputs plus two stereo inputs

* A STAGEPAS 1K mkII and a DXL1K: up to five mono inputs plus one stereo input

SPECIFICATIONS:

  • Type: Powered subwoofer with a line array speaker
  • Mixing Channels: 5 (Mono x 3 + Stereo x1)
  • Input Channel Functions: Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST
  • Output Channel Functions: MODE (SPEECH/MUSIC/CLUB)
  • Inputs: Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1
  • Outputs: Link out x1, Monitior out x1
  • Bluetooth Ver.5.0, A2DP (SBC, AAC)
  • Controls and other: Reverb foot switch, STAGEPAS Controller (iOS/Android app)
  • DSP: SPX digital reverb (4 program, parameter control)
  • Speaker Type: Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed
  • Frequency Range: 37 Hz - 20 kHz
  • Coverage Area: H170ï¾ÂŸ x V30ï¾ÂŸ
  • Crossover: 240 Hz
  • Max Output: 125 dB SPL
  • LF: Powered subwoofer: 12” (30 cm) Cone
  • HF: Line array speaker: 1.5” (3.8 cm) Cone x 10
  • Amplifier Class: Class-D
  • Power Rating: 1100 W
  • Handle: Top of powered subwoofer x1
  • Dimensions: System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each)
  • Weight: System: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each)

Optional FC5 (foot switch for reverb ON/OFF)
